High Pressure CE ISO 20L 4 Bar Oxygen Concentrator Use for Hospital and Industry
price
US $3,000.00 / unit
JAY-20-4.0
1 unit
Quantity
Unable to ship to shipping address, please feedback to us
- Place of Origin:Hebei, China
- Brand Name:LONGFIAN
- Model Number:JAY-20-4.0
- Warranty:1 Year
- After-sale Service:Online technical support
- Instrument classification:Class II
- Flow rate:0-20LPM
- Purity:93% (±3%)
- Material:Steel
- Application:Veterinary
- Size:880x836x800mm
- Certificate:CE ISO
- Feature:noiseless
- Techonolgy:PSA
- OEM and ODM:YES
Product Description

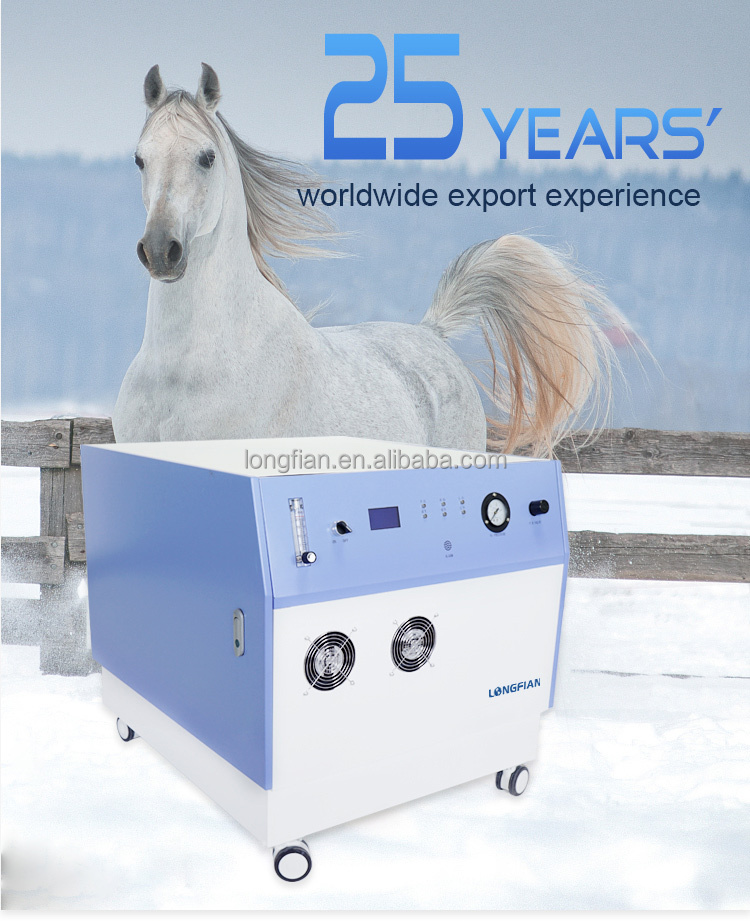

High pressure CE ISO 20L 4 Bar oxygen concentrator use for hospital and industry

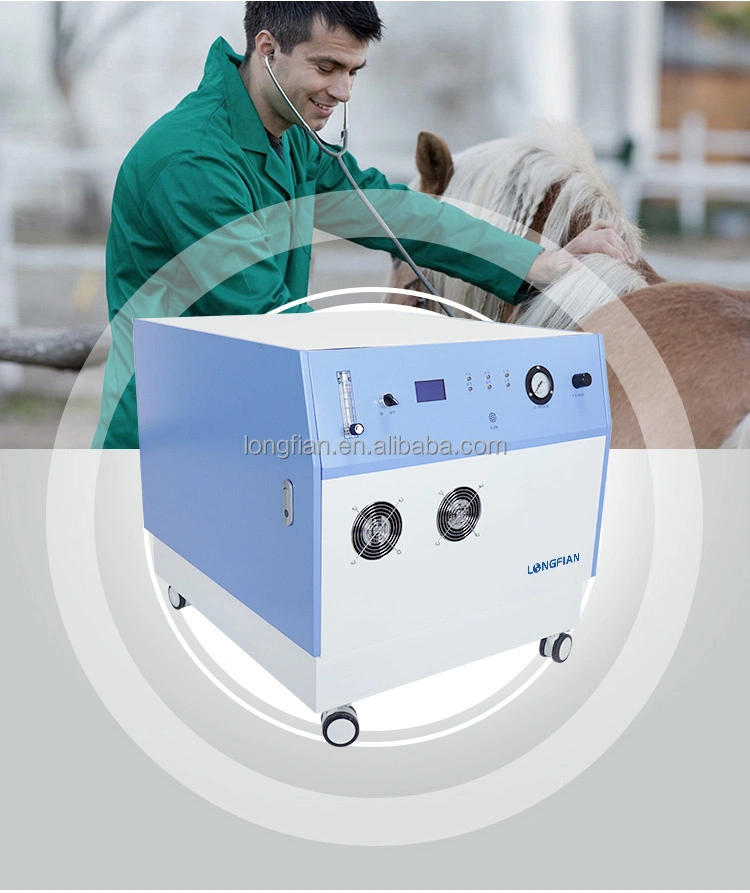

The animal market, zoos and animal hospitals are usually equipped with oxygen concentrators to help cure animals if they are injured or sick. Veterinary oxygen generators we provide have been exported to many countries such as the UK and Italy. The customers use our oxygen concentrators to supply the animals with oxygen when performing operations on them. Our veterinary oxygen producing machines have reliable quality conforming to the standard of ISO9001. Generally, their service life can be as long as 5 years.
Model | JAY-20-4.0 |
Flow rate | 0-20L/min |
Oxygen purity | 93%± 3% |
Noise level | ≤60dB |
Outlet pressure | 0.14-0.4MPA |
Power Supply | AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz) |
Power consumption | ≤2000W |

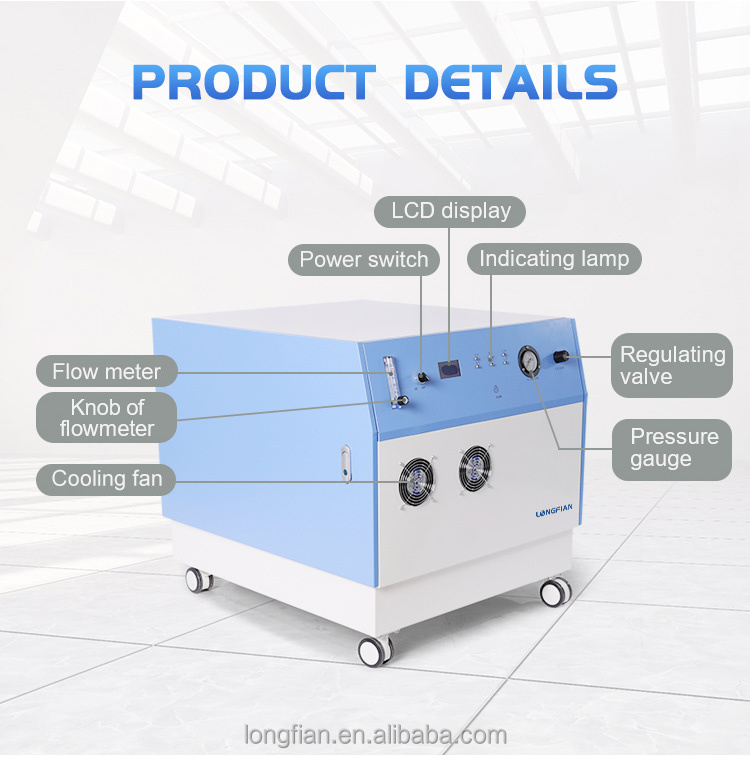

LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
Alarm | Power failure alarm; high/low pressure alarm |
Size | 880x836x800mm |
Net weight | 149kgs |
Opitional | 1. Nebulizer (Atomizer) 2. Low purity alarm/Low flow alarm 3. Maintenance alarm: alarm for maintenance after 3000 hours' operation. 4.High temperature alarm: alarm for high temperature when the internal system temperature is above 50 ℃. 5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient's oxygen saturation on site. 6. Small LCD display: showing accumulated time, present working time and preset time. |

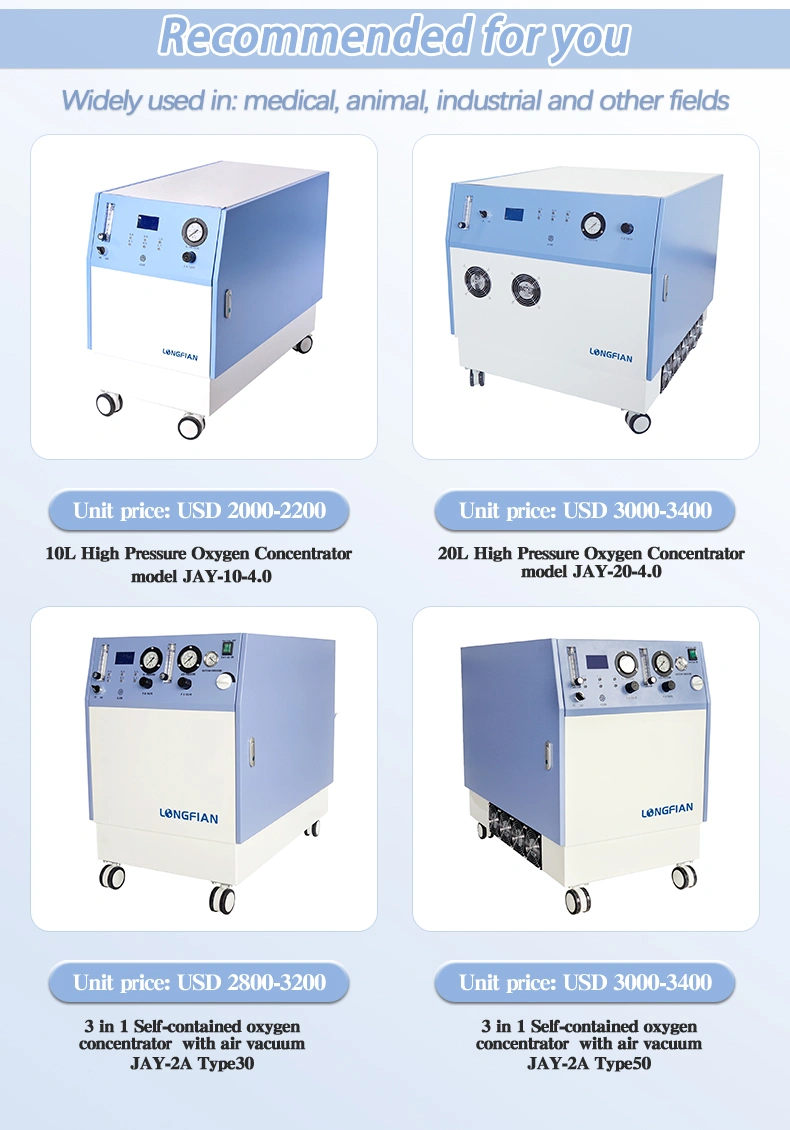

We recommend you the following veterinary oxygen concentrating machines based on the size of animal.
1. JAY-5/JAY-8/JAY-10 oxygen concentrator with ordinary pressure (0.04-0.07Mpa): Suitable for oxygen supply for small animals, such as dog, cat, etc.

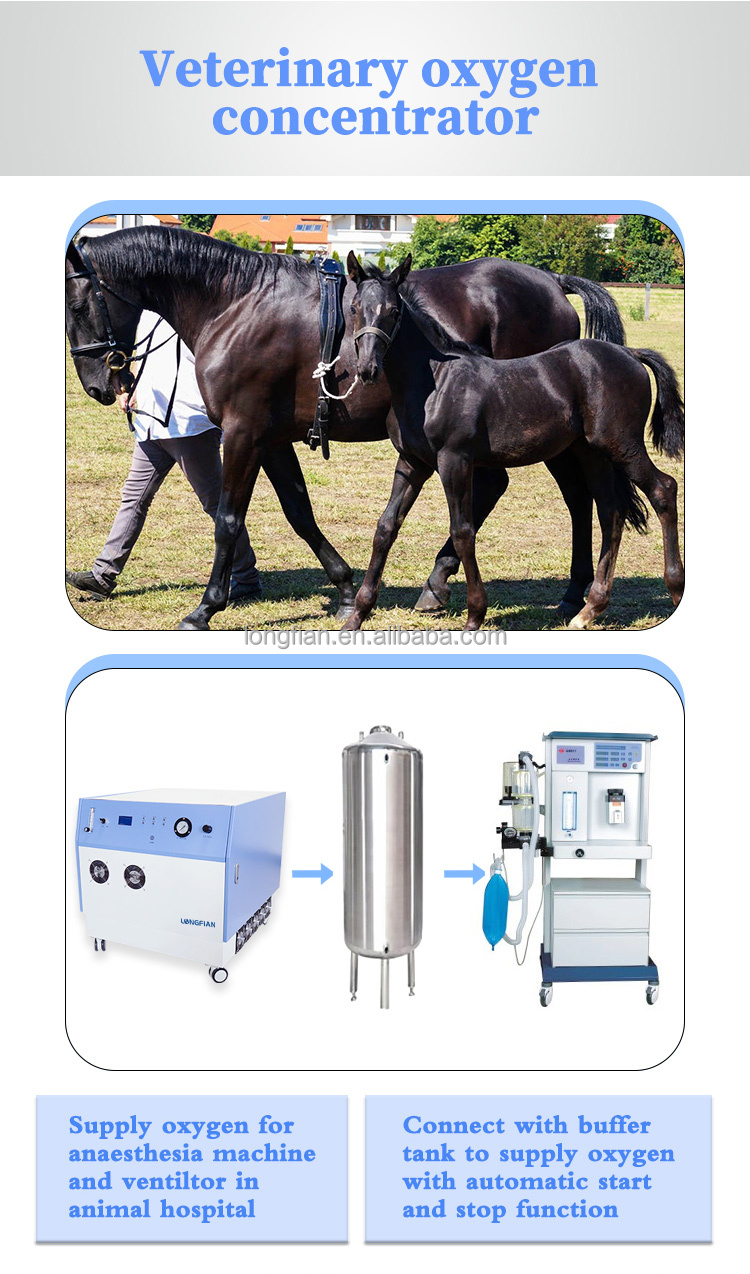

2. JAY-10-4.0/JAY-15-4.0/JAY-20-4.0 oxygen concentrator with high pressure (0.14-0.4Mpa): Suitable for oxygen supply for big animals such as horse, ox, etc. The 0.4Mpa oxygen machine can be connected with ventilator or anesthesia machine to help save animal's life in surgeries.
1. JAY-5/JAY-8/JAY-10 oxygen concentrator with ordinary pressure (0.04-0.07Mpa): Suitable for oxygen supply for small animals, such as dog, cat, etc.
2. JAY-10-4.0/JAY-15-4.0/JAY-20-4.0 oxygen concentrator with high pressure (0.14-0.4Mpa): Suitable for oxygen supply for big animals such as horse, ox, etc. The 0.4Mpa oxygen machine can be connected with ventilator or anesthesia machine to help save animal's life in surgeries.
Product Application
1. Big animal use
2. Veterinary use
2. Veterinary use
packaging and shipping
Packaging: Standard carton packing or customized based on customers' request.
Delivery Time: 7-10days after order confirmed.
Delivery Time: 7-10days after order confirmed.
Our company

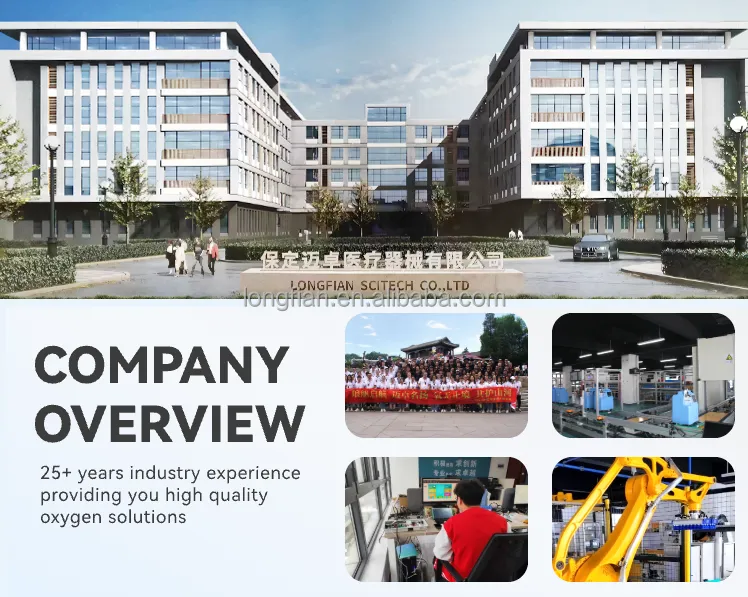

Who We Are
Longfian, a leading manufacturer, specialized in oxygen solution for 20 years, is professionally dedicated to R&D, production and marketing of series oxygen concentrators which refer to medical oxygen therapy, indoor oxygen supply, plateau simulation,industrial, veterinary and other fields. We are headquartered in Baoding China covering an area of 20000 square meters, with 150 employees and annual production capacity of 600,000 units.
What We Innovated
Longfian has always been a leader in innovative oxygen solutions. We have developed the IOT administration system for patient oxygen inhaling datas, applied both in hospitals and community medical centers. We devoted ourselves to noise levels and successfully reduced it to 33dB. We are not only leading in research and development, but also possess of the world- level testing equipments, such as Acoustics Test Lab, the Test Cabinet for Temperature and Humidity, Altitude Simulation Test Cabinet and Drop Test Bench.
Why Us
All of our products comply with ISO13485 and some models got the certificates of CE. With years of experiences,we have successfully been awarded over 30 patents of invention and design, completed registration of more than 45 countries for import permits. Till now, our products cover more than 120 countries around the world. LONGFIAN has been appointed as the qualified supplier to the United Nations Organization such as WHO, UNICEF, UNOPS, UNDP and so on.
Mission and Vision
we will continue adhering to our mission: “Protecting the beautiful homeland of humanity by feeding oxygen to all life on the earth”, achieving our vision: “Empower oxygen to various demand of human beings”.
Longfian, a leading manufacturer, specialized in oxygen solution for 20 years, is professionally dedicated to R&D, production and marketing of series oxygen concentrators which refer to medical oxygen therapy, indoor oxygen supply, plateau simulation,industrial, veterinary and other fields. We are headquartered in Baoding China covering an area of 20000 square meters, with 150 employees and annual production capacity of 600,000 units.
What We Innovated
Longfian has always been a leader in innovative oxygen solutions. We have developed the IOT administration system for patient oxygen inhaling datas, applied both in hospitals and community medical centers. We devoted ourselves to noise levels and successfully reduced it to 33dB. We are not only leading in research and development, but also possess of the world- level testing equipments, such as Acoustics Test Lab, the Test Cabinet for Temperature and Humidity, Altitude Simulation Test Cabinet and Drop Test Bench.
Why Us
All of our products comply with ISO13485 and some models got the certificates of CE. With years of experiences,we have successfully been awarded over 30 patents of invention and design, completed registration of more than 45 countries for import permits. Till now, our products cover more than 120 countries around the world. LONGFIAN has been appointed as the qualified supplier to the United Nations Organization such as WHO, UNICEF, UNOPS, UNDP and so on.
Mission and Vision
we will continue adhering to our mission: “Protecting the beautiful homeland of humanity by feeding oxygen to all life on the earth”, achieving our vision: “Empower oxygen to various demand of human beings”.
Longfian Footprint in the World
Since the year 1998, we started to go deep and explore the world market. 25 years export experience, 95 countries visits(like USA, Mexico, Colombia, Brazil, United Kingdom,Germany, Romania,Spain, Russia, Tajikistan, India,Thailand, Vietnam, South Africa, Nigeria etc.), more than 480 international exhibitions (including the FIME, MEDICA, ARAB HEALTH, HOSPITALAR, CMEF etc. ) which all laid a solid foundation for the No. 1 export volume of China-Made Oxygen Concentrator for recent 6 consecutive years and make LONGFIAN brand the benchmark of the mark.
