Medical Oxygen Generation Station 20-60Lpm High Flow Oxygen Generator for Hospital Central Oxygen Supply System
price
US $2,100.00 / unit
JAY-40
1 unit
Quantity
Unable to ship to shipping address, please feedback to us
- Place of Origin:Hebei, China
- Brand Name:LONGFIAN
- Model Number:JAY-40
- Power Source:Electric
- Warranty:1 Year
- After-sale Service:Online technical support
- Power Supply Mode:Plug-in
- Material:Steel, Plastic, Metal
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class II
- Safety standard:ISO 9001
- Color:blue and white
- OXYGEN CONCENTRATION:93%(±3%)
- Weight:160kgs
- SOUND LEVEL:≤58db
- Size:760mm*540mm*1380mm
- Technology:PSA
- Certificate:CE ISO
- OEM/ODM:Available
- Product name:Medical Oxygen Concentrator
Product Description

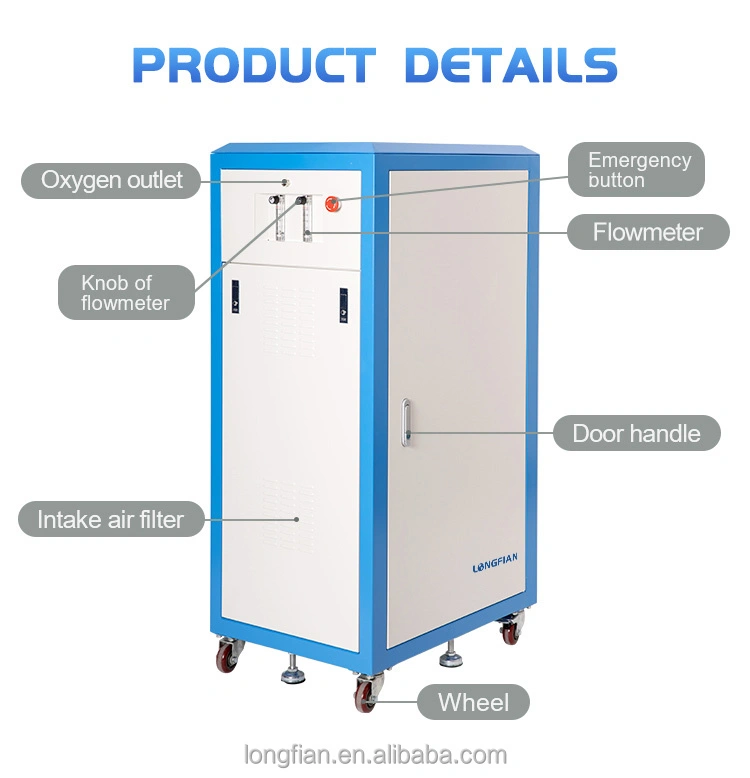

40LPM JAY-40 High Flow Oxygen Generator for Hospital

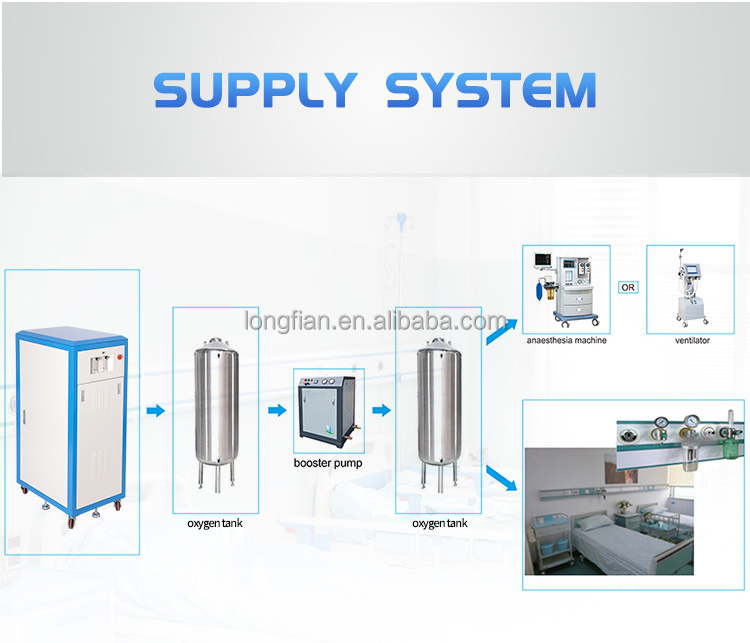

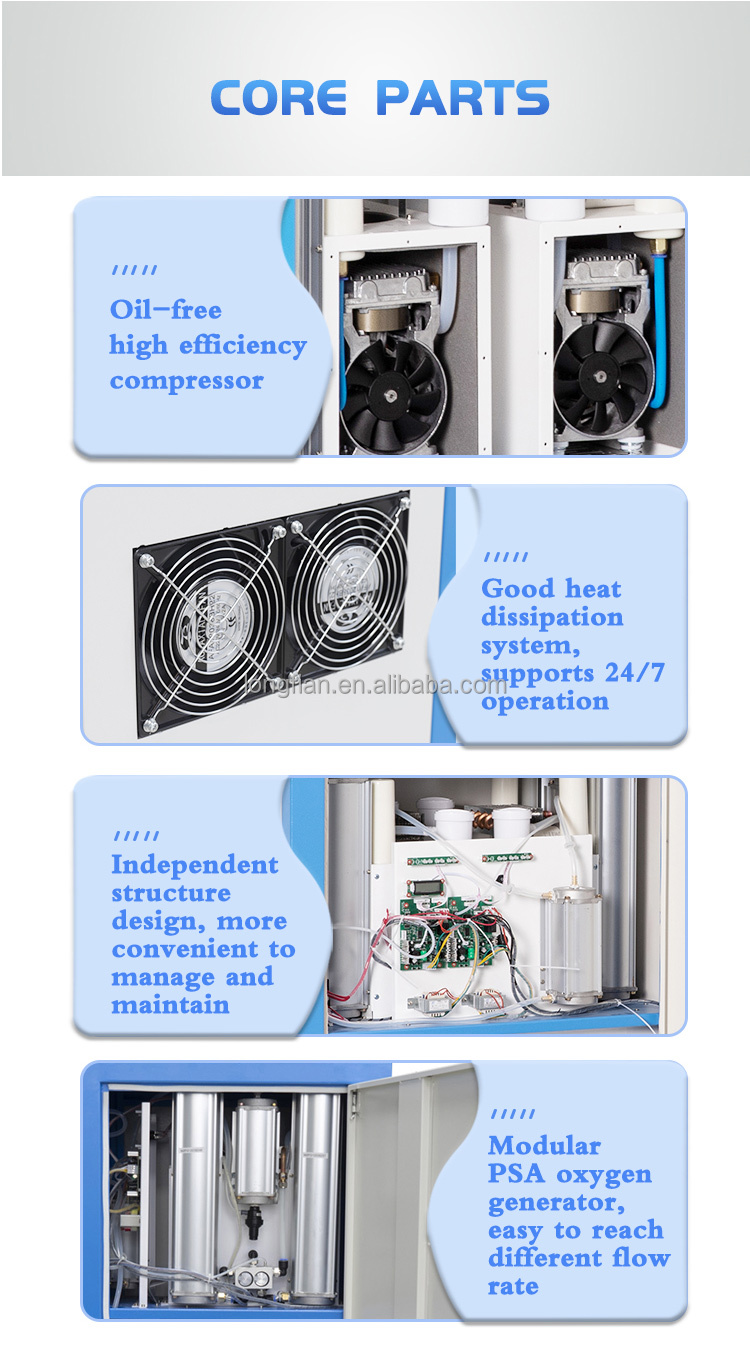

Longfian innovative oxygen generating system is designed for hospitals and clinics with 5-100 beds. The system includes PSA oxygen generator, buffer tank, booster pump, high pressure oxygen compressor, etc. It represents a higher medical standard and true sense of innovation.
Features
（1）It offers an economic, reliable and safe alternative to traditional oxygen system.
（2）The design is made for 24/7 operation.
（3）It is equipped with automatic start&stop function, enabling the system to start and stop automatically.
（2）The design is made for 24/7 operation.
（3）It is equipped with automatic start&stop function, enabling the system to start and stop automatically.
MODAL | JAY-40 |
FLOW RATE | 1-40L |
OUTLET PRESSURE | 6-10Psi(0.04-0.07Mpa)/20Psi(0.14Mpa) |
OXYGEN CONCENTRATION | 93%±3% |
SOUND LEVEL | ≤58db |
POWER CONSUMPTION | ≤2200w |
ALARM | Power failure alarm, high/low pressure alarm, low oxygen concentration alarm |
NET WEIGHT | 160kgs |
DIMENSION | 760mm*540mm*1380mm |
Product Application
Application
（1）For hospital with 5-100 beds.（2）For anaesthesia machine in operating room.
（3）For ventilator in Intensive Care Unit(ICU).
（4）For high pressure cylinder filling plant.
（3）For ventilator in Intensive Care Unit(ICU).
（4）For high pressure cylinder filling plant.
Packing & Delivery

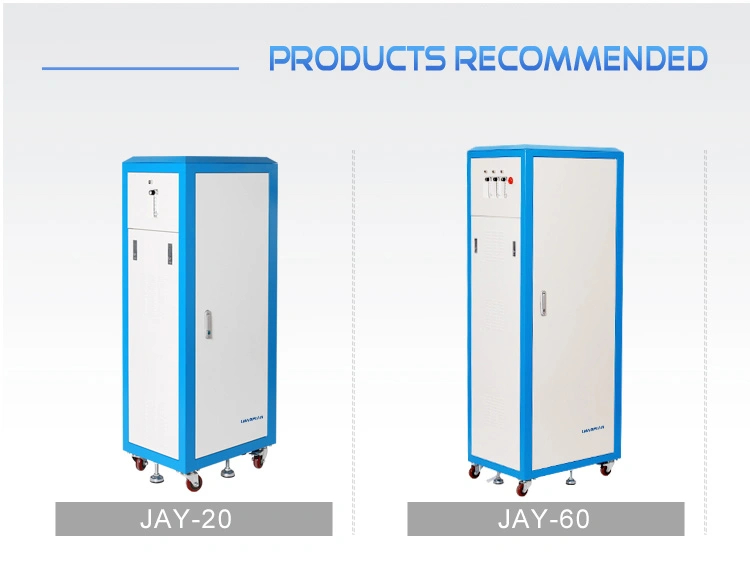

Related Products
Company Profile
Who We Are

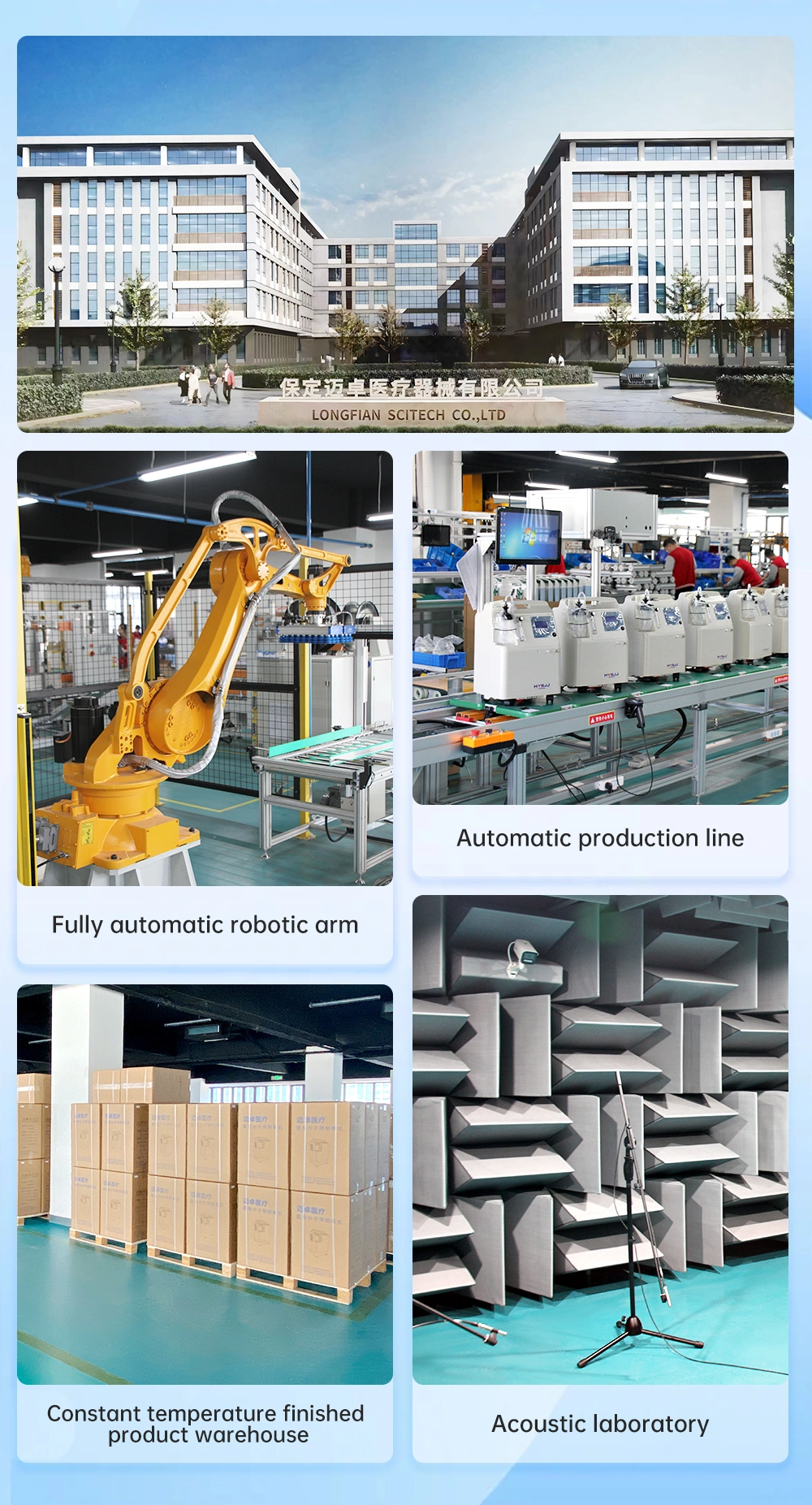

Longfian, a leading manufacturer, specialized in oxygen solution for 20 years, is professionally dedicated to R&D, production and marketing of series oxygen concentrators which refer to medical oxygen therapy, indoor oxygen supply, plateau simulation, industrial, veterinary and other fields. We are headquartered in Baoding China covering an area of 20000 square meters, with 150 employees and annual production capacity of 600,000 units.
What We Innovated
Longfian has always been a leader in innovative oxygen solutions. We have developed the IOT administration system for patient oxygen inhaling datas, applied both in hospitals and community medical centers. We devoted ourselves to noise levels and successfully reduced it to 33dB. We are not only leading in research and development, but also possess of the world- level testing equipments, such as Acoustics Test Lab, the Test Cabinet for Temperature and Humidity, Altitude Simulation Test Cabinet and Drop Test Bench.
Why Us
All of our products comply with ISO13485 and some models got the certificates of CE. With years of experiences, we have successfully beencawarded over 30 patents of invention and design, completed registration of more than 45 countries for import permits. Till now, our products cover more than 120 countries around the world.LONGFIAN has been appointed as the qualified supplier to the United Nations Organization such as WHO, UNICEF, UNOPS, UNDP and so on.
Mission and Vision
we will continue adhering to our mission: “Protecting the beautiful homeland of humanity by feeding oxygen to all life on the earth”,achieving our vision: “Empower oxygen to various demand of human beings”.
Longfian, a leading manufacturer, specialized in oxygen solution for 20 years, is professionally dedicated to R&D, production and marketing of series oxygen concentrators which refer to medical oxygen therapy, indoor oxygen supply, plateau simulation, industrial, veterinary and other fields. We are headquartered in Baoding China covering an area of 20000 square meters, with 150 employees and annual production capacity of 600,000 units.
What We Innovated
Longfian has always been a leader in innovative oxygen solutions. We have developed the IOT administration system for patient oxygen inhaling datas, applied both in hospitals and community medical centers. We devoted ourselves to noise levels and successfully reduced it to 33dB. We are not only leading in research and development, but also possess of the world- level testing equipments, such as Acoustics Test Lab, the Test Cabinet for Temperature and Humidity, Altitude Simulation Test Cabinet and Drop Test Bench.
Why Us
All of our products comply with ISO13485 and some models got the certificates of CE. With years of experiences, we have successfully beencawarded over 30 patents of invention and design, completed registration of more than 45 countries for import permits. Till now, our products cover more than 120 countries around the world.LONGFIAN has been appointed as the qualified supplier to the United Nations Organization such as WHO, UNICEF, UNOPS, UNDP and so on.
Mission and Vision
we will continue adhering to our mission: “Protecting the beautiful homeland of humanity by feeding oxygen to all life on the earth”,achieving our vision: “Empower oxygen to various demand of human beings”.
FAQ
Q: Are you a factory or trading company?
A:We are a leading manufacturer specialized in oxygen solutions for 25 years. We have 520 employees, covering an area of 40,000 square meters, with annual production capacity 1.5million units. Welcome to visit us! Seeing is believing, our office, showroom and workshop are in the same place.
Q. Where is your factory located? How can I visit there?
A:Our factory is located at Power valley pioneer park, NO.369 Huiyang street , 071051,Baoding, Hebei,China, near to Beijing, It only takes half an hour from Beijing to our factory by train. We also can provide pick-up service if needed.
Q. What is your payment and trading term?
A: 1. Payment term: T/T, or L/C , or Visa, MasterCard, PAYPAL, APPLE_PAY, GOOGLE_PAY. 2. Trading term: EXW/FOB/CIF etc. Q: How to purchase your product? A: Quotation → PI → PI confirmation → Payment receiving →Producing →QC inspection→ Packing → Shipping
Q: Which port do you choose?
A: Tianjin, Beijing, Shenzhen Sea Port or Air Port, or chosen by you.
Q:Can I print our logo on the products and change the color of products?
A: Yes, we provide OEM services. Please tell us your requirement, we will do customized products for you.
Q: Can I get a sample?
A:Yes, sample is available and the price is negotiable. The sample can be sent out soon once order confirmed.
